staticvoid
_int_free (mstate av, mchunkptr p, int have_lock)
{
INTERNAL_SIZE_T size; /* its size */
mfastbinptr *fb; /* associated fastbin */
mchunkptr nextchunk; /* next contiguous chunk */
INTERNAL_SIZE_T nextsize; /* its size */int nextinuse; /* true if nextchunk is used */
INTERNAL_SIZE_T prevsize; /* size of previous contiguous chunk */
mchunkptr bck; /* misc temp for linking */
mchunkptr fwd; /* misc temp for linking */constchar *errstr = NULL;
int locked = 0;
size = chunksize (p);
/* Little security check which won't hurt performance: the
allocator never wrapps around at the end of the address space.
Therefore we can exclude some size values which might appear
here by accident or by "design" from some intruder. */if (__builtin_expect ((uintptr_t) p > (uintptr_t) -size, 0)
|| __builtin_expect (misaligned_chunk (p), 0))
{
errstr = "free(): invalid pointer";
errout:
if (!have_lock && locked)
(void) mutex_unlock (&av->mutex);
malloc_printerr (check_action, errstr, chunk2mem (p), av);
return;
}
/* We know that each chunk is at least MINSIZE bytes in size or a
multiple of MALLOC_ALIGNMENT. */if (__glibc_unlikely (size < MINSIZE || !aligned_OK (size)))
{
errstr = "free(): invalid size";
goto errout;
}
check_inuse_chunk(av, p);
/*
If eligible, place chunk on a fastbin so it can be found
and used quickly in malloc.
*/if ((unsignedlong)(size) <= (unsignedlong)(get_max_fast ())
#if TRIM_FASTBINS/*
If TRIM_FASTBINS set, don't place chunks
bordering top into fastbins
*/
&& (chunk_at_offset(p, size) != av->top)
#endif
) {
if (__builtin_expect (chunk_at_offset (p, size)->size <= 2 * SIZE_SZ, 0)
|| __builtin_expect (chunksize (chunk_at_offset (p, size))
>= av->system_mem, 0))
{
/* We might not have a lock at this point and concurrent modifications
of system_mem might have let to a false positive. Redo the test
after getting the lock. */if (have_lock
|| ({ assert (locked == 0);
mutex_lock(&av->mutex);
locked = 1;
chunk_at_offset (p, size)->size <= 2 * SIZE_SZ
|| chunksize (chunk_at_offset (p, size)) >= av->system_mem;
}))
{
errstr = "free(): invalid next size (fast)";
goto errout;
}
if (! have_lock)
{
(void)mutex_unlock(&av->mutex);
locked = 0;
}
}
free_perturb (chunk2mem(p), size - 2 * SIZE_SZ);
set_fastchunks(av);
unsignedint idx = fastbin_index(size);
fb = &fastbin (av, idx);
/* Atomically link P to its fastbin: P->FD = *FB; *FB = P; */
mchunkptr old = *fb, old2;
unsignedint old_idx = ~0u;
do
{
/* Check that the top of the bin is not the record we are going to add
(i.e., double free). */if (__builtin_expect (old == p, 0))
{
errstr = "double free or corruption (fasttop)";
goto errout;
}
/* Check that size of fastbin chunk at the top is the same as
size of the chunk that we are adding. We can dereference OLD
only if we have the lock, otherwise it might have already been
deallocated. See use of OLD_IDX below for the actual check. */if (have_lock && old != NULL)
old_idx = fastbin_index(chunksize(old));
p->fd = old2 = old;
}
while ((old = catomic_compare_and_exchange_val_rel (fb, p, old2)) != old2);
if (have_lock && old != NULL && __builtin_expect (old_idx != idx, 0))
{
errstr = "invalid fastbin entry (free)";
goto errout;
}
}
/*
Consolidate other non-mmapped chunks as they arrive.
*/elseif (!chunk_is_mmapped(p)) {
if (! have_lock) {
(void)mutex_lock(&av->mutex);
locked = 1;
}
nextchunk = chunk_at_offset(p, size);
/* Lightweight tests: check whether the block is already the
top block. */if (__glibc_unlikely (p == av->top))
{
errstr = "double free or corruption (top)";
goto errout;
}
/* Or whether the next chunk is beyond the boundaries of the arena. */if (__builtin_expect (contiguous (av)
&& (char *) nextchunk
>= ((char *) av->top + chunksize(av->top)), 0))
{
errstr = "double free or corruption (out)";
goto errout;
}
/* Or whether the block is actually not marked used. */if (__glibc_unlikely (!prev_inuse(nextchunk)))
{
errstr = "double free or corruption (!prev)";
goto errout;
}
nextsize = chunksize(nextchunk);
if (__builtin_expect (nextchunk->size <= 2 * SIZE_SZ, 0)
|| __builtin_expect (nextsize >= av->system_mem, 0))
{
errstr = "free(): invalid next size (normal)";
goto errout;
}
free_perturb (chunk2mem(p), size - 2 * SIZE_SZ);

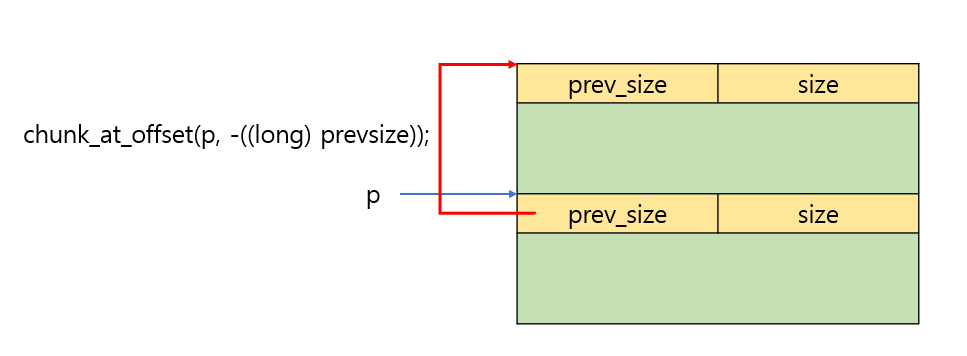

/* consolidate backward */if (!prev_inuse(p)) {
prevsize = p->prev_size;
size += prevsize;
p = chunk_at_offset(p, -((long) prevsize));
unlink(av, p, bck, fwd);
}
if (nextchunk != av->top) {
/* get and clear inuse bit */
nextinuse = inuse_bit_at_offset(nextchunk, nextsize);
/* consolidate forward */if (!nextinuse) {
unlink(av, nextchunk, bck, fwd);
size += nextsize;
} elseclear_inuse_bit_at_offset(nextchunk, 0);
/*
Place the chunk in unsorted chunk list. Chunks are
not placed into regular bins until after they have
been given one chance to be used in malloc.
*/
bck = unsorted_chunks(av);
fwd = bck->fd;
if (__glibc_unlikely (fwd->bk != bck))
{
errstr = "free(): corrupted unsorted chunks";
goto errout;
}
p->fd = fwd;
p->bk = bck;
if (!in_smallbin_range(size))
{
p->fd_nextsize = NULL;
p->bk_nextsize = NULL;
}
bck->fd = p;
fwd->bk = p;
set_head(p, size | PREV_INUSE);
set_foot(p, size);
check_free_chunk(av, p);
}
/*
If the chunk borders the current high end of memory,
consolidate into top
*/else {
size += nextsize;
set_head(p, size | PREV_INUSE);
av->top = p;
check_chunk(av, p);
}
/*
If freeing a large space, consolidate possibly-surrounding
chunks. Then, if the total unused topmost memory exceeds trim
threshold, ask malloc_trim to reduce top.
Unless max_fast is 0, we don't know if there are fastbins
bordering top, so we cannot tell for sure whether threshold
has been reached unless fastbins are consolidated. But we
don't want to consolidate on each free. As a compromise,
consolidation is performed if FASTBIN_CONSOLIDATION_THRESHOLD
is reached.
*/if ((unsignedlong)(size) >= FASTBIN_CONSOLIDATION_THRESHOLD) {
if (have_fastchunks(av))
malloc_consolidate(av);
if (av == &main_arena) {
#ifndef MORECORE_CANNOT_TRIMif ((unsignedlong)(chunksize(av->top)) >=
(unsignedlong)(mp_.trim_threshold))
systrim(mp_.top_pad, av);
#endif
} else {
/* Always try heap_trim(), even if the top chunk is not
large, because the corresponding heap might go away. */
heap_info *heap = heap_for_ptr(top(av));
assert(heap->ar_ptr == av);
heap_trim(heap, mp_.top_pad);
}
}
if (! have_lock) {
assert (locked);
(void)mutex_unlock(&av->mutex);
}
}
/*
If the chunk was allocated via mmap, release via munmap().
*/else {
munmap_chunk (p);
}
}
인자 및 변수
staticvoid
_int_free (mstate av, mchunkptr p, int have_lock)
{
INTERNAL_SIZE_T size; /* its size */
mfastbinptr *fb; /* associated fastbin */
mchunkptr nextchunk; /* next contiguous chunk */
INTERNAL_SIZE_T nextsize; /* its size */int nextinuse; /* true if nextchunk is used */
INTERNAL_SIZE_T prevsize; /* size of previous contiguous chunk */
mchunkptr bck; /* misc temp for linking */
mchunkptr fwd; /* misc temp for linking */constchar *errstr = NULL;
int locked = 0;
size = chunksize (p);
선언되는 변수들의 역할은 아래와 같다
size : free할 청크의 size
fb : p청크 size에 해당하는 fastbinsY[idx]에 최상단 freed 청크 주소
nextchunk : p의 다음 청크
nextsize : nextchunk의 size
nextinuse : nextchunk가 사용중 인지 (nextchunk 다음 청크에 PREV_INUSE 비트)
prevsize : p의 이전 청크 size

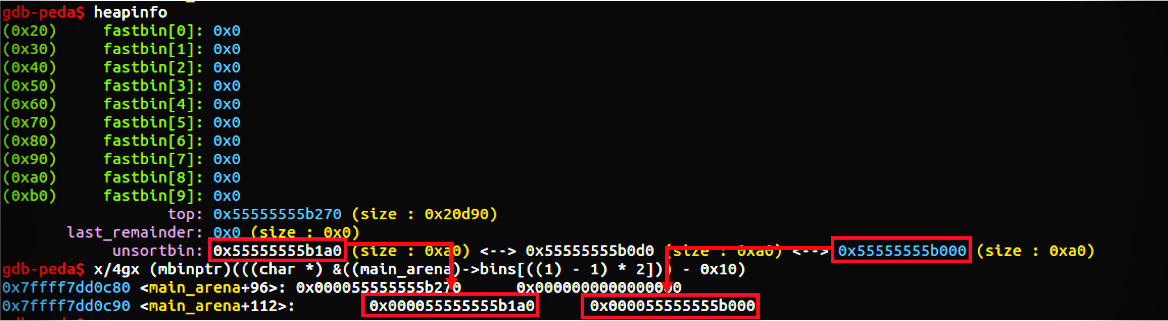

bck : bin[0] - 0x10의 주소
fwd : bck->fd (unsorted bin의 fd)
initial check
/* Little security check which won't hurt performance: the
allocator never wrapps around at the end of the address space.
Therefore we can exclude some size values which might appear
here by accident or by "design" from some intruder. */if (__builtin_expect ((uintptr_t) p > (uintptr_t) -size, 0)
|| __builtin_expect (misaligned_chunk (p), 0))
{
errstr = "free(): invalid pointer";
errout:
if (!have_lock && locked)
(void) mutex_unlock (&av->mutex);
malloc_printerr (check_action, errstr, chunk2mem (p), av);
return;
}
/* We know that each chunk is at least MINSIZE bytes in size or a
multiple of MALLOC_ALIGNMENT. */if (__glibc_unlikely (size < MINSIZE || !aligned_OK (size)))
{
errstr = "free(): invalid size";
goto errout;
}
check_inuse_chunk(av, p);
p->size에 대한 검사를 수행한다
p의 주소가 -size보다 큰지와 정렬되어 있는지 검사
size가 최소 청크 사이즈보다 작은지와 정렬되어 있는지 검사
fastbin
/*
If eligible, place chunk on a fastbin so it can be found
and used quickly in malloc.
*/if ((unsignedlong)(size) <= (unsignedlong)(get_max_fast ())
#if TRIM_FASTBINS/*
If TRIM_FASTBINS set, don't place chunks
bordering top into fastbins
*/
&& (chunk_at_offset(p, size) != av->top)
#endif
) {
if (__builtin_expect (chunk_at_offset (p, size)->size <= 2 * SIZE_SZ, 0)
|| __builtin_expect (chunksize (chunk_at_offset (p, size))
>= av->system_mem, 0))
{
/* We might not have a lock at this point and concurrent modifications
of system_mem might have let to a false positive. Redo the test
after getting the lock. */if (have_lock
|| ({ assert (locked == 0);
mutex_lock(&av->mutex);
locked = 1;
chunk_at_offset (p, size)->size <= 2 * SIZE_SZ
|| chunksize (chunk_at_offset (p, size)) >= av->system_mem;
}))
{
errstr = "free(): invalid next size (fast)";
goto errout;
}
if (! have_lock)
{
(void)mutex_unlock(&av->mutex);
locked = 0;
}
}
free_perturb (chunk2mem(p), size - 2 * SIZE_SZ);
set_fastchunks(av);
unsignedint idx = fastbin_index(size);
fb = &fastbin (av, idx);
/* Atomically link P to its fastbin: P->FD = *FB; *FB = P; */
mchunkptr old = *fb, old2;
unsignedint old_idx = ~0u;
do
{
/* Check that the top of the bin is not the record we are going to add
(i.e., double free). */if (__builtin_expect (old == p, 0))
{
errstr = "double free or corruption (fasttop)";
goto errout;
}
/* Check that size of fastbin chunk at the top is the same as
size of the chunk that we are adding. We can dereference OLD
only if we have the lock, otherwise it might have already been
deallocated. See use of OLD_IDX below for the actual check. */if (have_lock && old != NULL)
old_idx = fastbin_index(chunksize(old));
p->fd = old2 = old;
}
while ((old = catomic_compare_and_exchange_val_rel (fb, p, old2)) != old2);
if (have_lock && old != NULL && __builtin_expect (old_idx != idx, 0))
{
errstr = "invalid fastbin entry (free)";
goto errout;
}
}
p의 size가 fastbin범위에 있으면 수행되는 코드로 수행하는 작업은 아래와 같다 세부 과정은 더보기에 정리되어있다
if (__builtin_expect (chunk_at_offset (p, size)->size <= 2 * SIZE_SZ, 0)
|| __builtin_expect (chunksize (chunk_at_offset (p, size))
>= av->system_mem, 0))
{
/* We might not have a lock at this point and concurrent modifications
of system_mem might have let to a false positive. Redo the test
after getting the lock. */if (have_lock
|| ({ assert (locked == 0);
mutex_lock(&av->mutex);
locked = 1;
chunk_at_offset (p, size)->size <= 2 * SIZE_SZ
|| chunksize (chunk_at_offset (p, size)) >= av->system_mem;
}))
{
errstr = "free(): invalid next size (fast)";
goto errout;
}
if (! have_lock)
{
(void)mutex_unlock(&av->mutex);
locked = 0;
}
}
p청크의 다음 청크 size가 정상인 청크 크기의 범위 내에 존재하는지 검사하는데 2가지 중 1개만 충족되면 에러를 뱉는다
다음 청크 size가 최소 청크보다 작은지
다음 청크 size가 system_mem보다 큰지
free_perturb (chunk2mem(p), size - 2 * SIZE_SZ);
set_fastchunks(av);
unsignedint idx = fastbin_index(size);
fb = &fastbin (av, idx);
/* Atomically link P to its fastbin: P->FD = *FB; *FB = P; */
mchunkptr old = *fb, old2;
unsignedint old_idx = ~0u;
arena flags에 fastchunks_flag를 설정
p청크의 size에 대한 fastbinsY인덱스를 구하고 인덱스 주소 fb에 저장
old에 인덱스에 최상단에 있는 청크 주소 저장
old_idx를 0xffffffff로 초기화
do
{
/* Check that the top of the bin is not the record we are going to add
(i.e., double free). */if (__builtin_expect (old == p, 0))
{
errstr = "double free or corruption (fasttop)";
goto errout;
}
/* Check that size of fastbin chunk at the top is the same as
size of the chunk that we are adding. We can dereference OLD
only if we have the lock, otherwise it might have already been
deallocated. See use of OLD_IDX below for the actual check. */if (have_lock && old != NULL)
old_idx = fastbin_index(chunksize(old));
p->fd = old2 = old;
}
while ((old = catomic_compare_and_exchange_val_rel (fb, p, old2)) != old2);
double free를 검사해서 p가 최상단에 있는 chunk와 동일할 경우 에러를 뱉는다
다를 경우 p->fd와 old2에 인덱스의 최상단 chunk(old)를 저장하고 청크 p를 인덱스에 해당하는 fastbinsY배열 최상단에 저장한다
not fastbin
/*
Consolidate other non-mmapped chunks as they arrive.
*/elseif (!chunk_is_mmapped(p)) {
if (! have_lock) {
(void)mutex_lock(&av->mutex);
locked = 1;
}
...
청크 p의 크기가 fastbin의 범위를 벗어날 경우 위에서 fasbin에 해당하는 코드를 수행하지 않고 p가 mmap으로 할당되었는지 확인한다 mmap으로 할당되지 않았을 경우 mutex를 lock한 뒤 작업을 수행한다 수행하는 작업은 아래와 같고 세부과정은 더보기에 정리되어 있다
p 이전의 청크(freed된 청크)를 p->prev_size의 값을 p에 빼줌으로 이전 청크를 알아내고 unlink로 이전 청크를 unlink한다
두 번째 조건문은 p의 nextchunk가 top 청크가 아니면 수행된다
해당 조건문에서는 nextchunk가 free되어 있는지 확인하고 free 되어있으면 nextchunk를 unlink한다
만약 free되지 않으면 nextchunk->size에 PREV_INUSE비트를 제거한다(p 청크가 free되기 때문)
/*
Place the chunk in unsorted chunk list. Chunks are
not placed into regular bins until after they have
been given one chance to be used in malloc.
*/
bck = unsorted_chunks(av);
fwd = bck->fd;
if (__glibc_unlikely (fwd->bk != bck))
{
errstr = "free(): corrupted unsorted chunks";
goto errout;
}
p->fd = fwd;
p->bk = bck;
if (!in_smallbin_range(size))
{
p->fd_nextsize = NULL;
p->bk_nextsize = NULL;
}
bck->fd = p;
fwd->bk = p;
set_head(p, size | PREV_INUSE);
set_foot(p, size);
check_free_chunk(av, p);
}
2번째 조건문에서 nextchunk에서 대한 조건문 수행 이후에 청크를 unsorted bin에 넣는 작업을 수행한다
unsorted bin fd의 bk가 unsorted bin의 bins주소 (bins[0] - 0x10)와 같은지 검사한다 만약 다르면 에러를 뱉는다
검사를 한 뒤 p->fd = fwd; p->bk = bck가 저장되면서 리스트를 연결하는데
재미있는 게 p->fd는 예상했듯이 이전에 unsorted bin의 들어온 chunk의 주소이고
bk에는 bck(bin[0] - 0x10)가 저장된다
if (!in_smallbin_range(size))
{
p->fd_nextsize = NULL;
p->bk_nextsize = NULL;
}
그리고 size(만약 병합하면 병합할 size도 더한 값)가 small bin보다 큰지 검사하고 크다면 p의 fd_nextsize와 bk_nextsize를 초기화시킨다
그리고 unsorted bin의 fd에 p의 주소를 저장하고 이전의 fd에 있던 chunk의 bk에 p주소를 저장한 후
p의 flag를 설정하고 p의 다음 청크의 prev_size에 p->size를 저장한다
그리고 check_free_chunk를 통해 free된 청크 p에 대해 검사를 수행한다
/*
If the chunk borders the current high end of memory,
consolidate into top
*/else {
size += nextsize;
set_head(p, size | PREV_INUSE);
av->top = p;
check_chunk(av, p);
}
만약 nextchunk가 top chunk라면 top chunk와 병합한다
/*
If freeing a large space, consolidate possibly-surrounding
chunks. Then, if the total unused topmost memory exceeds trim
threshold, ask malloc_trim to reduce top.
Unless max_fast is 0, we don't know if there are fastbins
bordering top, so we cannot tell for sure whether threshold
has been reached unless fastbins are consolidated. But we
don't want to consolidate on each free. As a compromise,
consolidation is performed if FASTBIN_CONSOLIDATION_THRESHOLD
is reached.
*/if ((unsignedlong)(size) >= FASTBIN_CONSOLIDATION_THRESHOLD) {
if (have_fastchunks(av))
malloc_consolidate(av);
if (av == &main_arena) {
#ifndef MORECORE_CANNOT_TRIMif ((unsignedlong)(chunksize(av->top)) >=
(unsignedlong)(mp_.trim_threshold))
systrim(mp_.top_pad, av);
#endif
} else {
/* Always try heap_trim(), even if the top chunk is not
large, because the corresponding heap might go away. */
heap_info *heap = heap_for_ptr(top(av));
assert(heap->ar_ptr == av);
heap_trim(heap, mp_.top_pad);
}
}
if (! have_lock) {
assert (locked);
(void)mutex_unlock(&av->mutex);
}
}
fastbin이 존재할 때 size가 65536(fastbin의 임계 값)보다 클 경우 해당 코드가 수행된다
fastbin이 존재할 경우 malloc_consolidate를 호출해 fastbin을 병합한다
main_arena이고 top 청크의 size가 trim의 임계값보다 클 경우 systrim을 호출
main arena아닐 경우 heap_trim함수 호출
마지막으로 락된 mutex를 해제한다
/*
If the chunk was allocated via mmap, release via munmap().
*/else {
munmap_chunk (p);
}
청크 p가 mmap으로 할당되었을 경우 munmap_chunk를 통해 해제 작업을 수행한다
free에서는 fastbin과 unsorted bin에만 청크를 넣어주기 때문에 small bin과 large bin에 freed 청크를 넣는 과정은 malloc에서 수행하게 된다
reference
size와 FASTBIN_CONSOLIDATION_THRESHOLD 조건문 코드 : 링크글
